Introduction

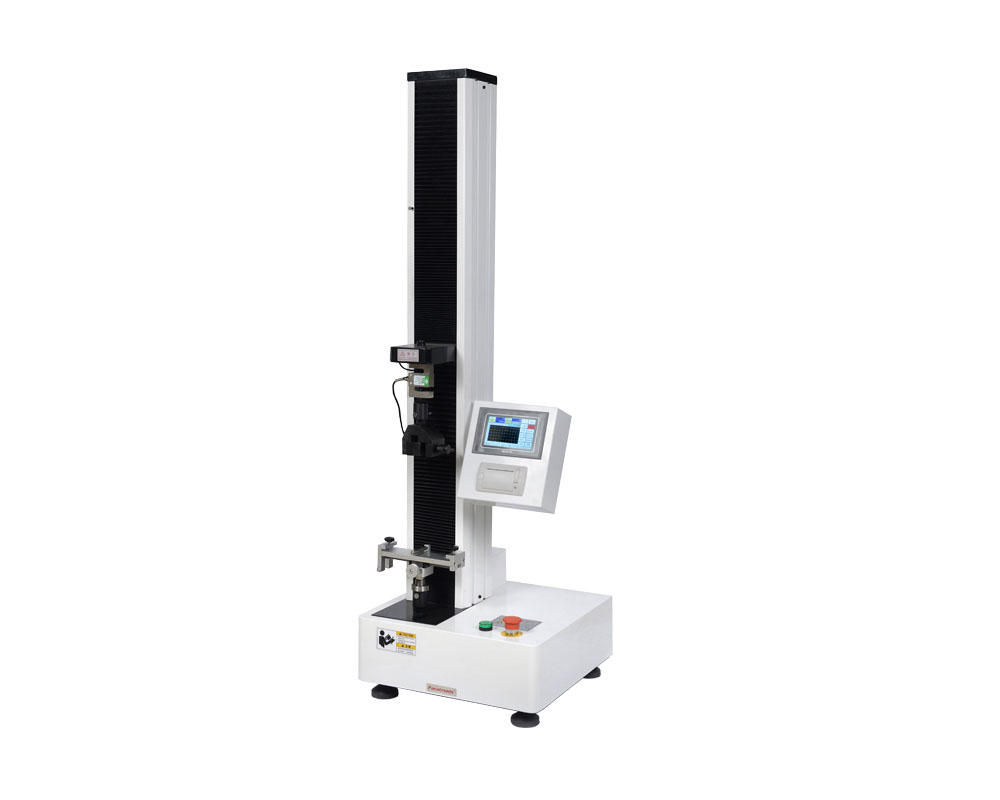

ETT-A Auto Tensile Tester is is applicable to determination of tensile properties, peel strength (90°,180°), deformation, tearing strength, heat seal strength, puncture resistance, opening force, low-speed unwrapping force, pullout force and other properties of plastic films, composite materials, adhesives, adhesive tapes, medical patches, protective films, pressure sensitive paper, combination caps, metal foils and back panel materials, etc.

Features

● Equipped with imported clamping system to avoid the error caused by the operator

● High sensitivity load cell and high quality lead screw to ensure accurate displacement

● Test speed can be set within the range of 5-600mm/min, which meet the requirements for 180° peel test, ampoule breaking force test, film tensile strength test, etc.

● Multiple testing modes including tensile strength, elongation rate, tensile strength at break, etc.

● The warranty is 3 years for the motor, 5 years for load cell and 1 year for the instrument

● Ultra-long stroke of 1000mm and large load (Max. 500kg) structural design to meet wide testing ranges

Standards

ISO37,  ASTME4, ASTMD882, ASTMD1938, ASTMD3330, ASTMF88, ASTMF904, JISP8113

Technical Specification
