Product introduction

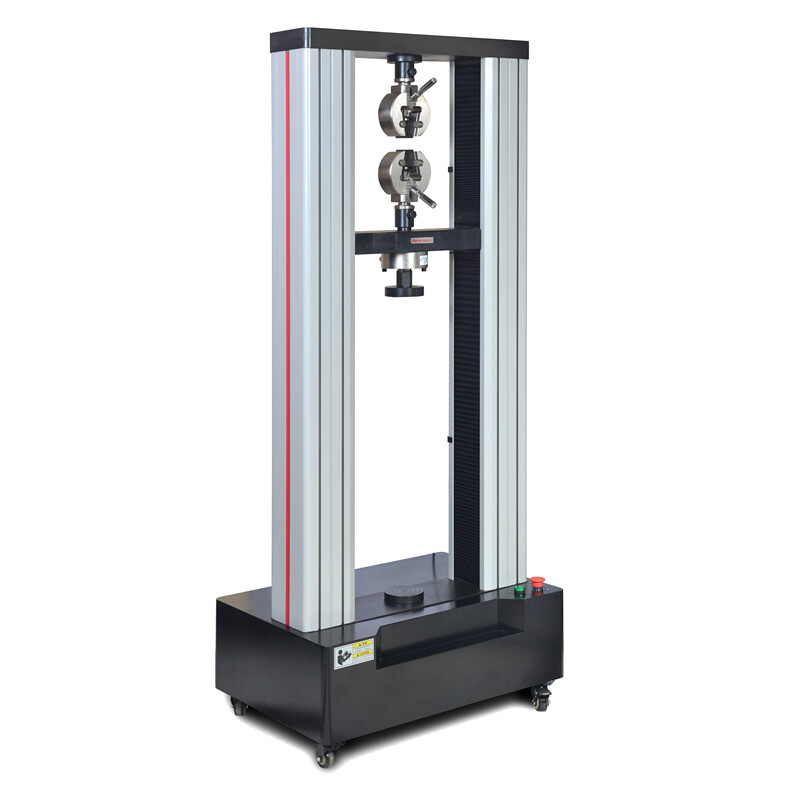

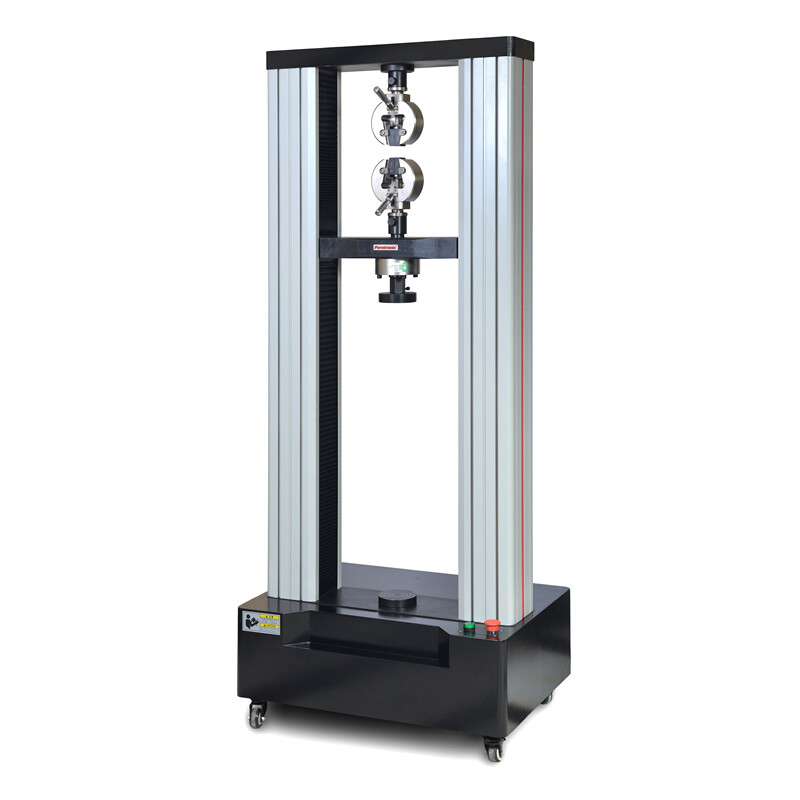

ETT-C microcomputer controlled electronic universal testing machine is the latest developed testing machine of our company, the design of the main engine and accessories, with beautiful appearance, easy operation, stable and reliable performance characteristics. The computer control system controls the rotation of the servo motor by the speed regulation system, and then decelerates by the deceleration system. The moving beam is driven up and down by the high-precision ball screw pair to complete the mechanical properties test of the sample, such as tensile strength, fixed elongation, elongation at break, and upper and lower yield strength. The series of products has no pollution, low noise and high efficiency. Has a very wide speed range and beam travel distance. With a wide variety of auxiliary tools, it has a very broad application prospect in the mechanical property test of metals and non-metals. This machine is suitable for quality supervision, teaching and research, aerospace, iron and steel metallurgy, wire rope, automobile motorcycle, plastic, rubber, weaving materials and other test fields.

The testing machine adopts the AC speed control system with high precision and stable performance and the motor as the driving system. Specially designed synchronous gear belt deceleration system and high-precision ball screw pair drive the moving beam movement of the testing machine; With Win7 as the operating platform based on database technology control and data processing software, the use of virtual instrument technology instead of the traditional digital tube, oscilloscope, to achieve the test force, test force peak, cross beam displacement, sample deformation and test curve screen display, all the test operation can be completed on the computer screen by mouse input. With good man-machine interface, easy to operate; The dual-channel full digital programmable amplifier inserted in the PC realizes the real sense of physical zero adjustment, gain adjustment and test force measurement of automatic shift, zero adjustment and calibration, without any analog adjustment links, the control circuit is highly integrated, completely eliminate the potentiometer and other mechanical adjustment devices, simple structure, reliable performance.

Technical parameters

Basic configuration
