Introduction

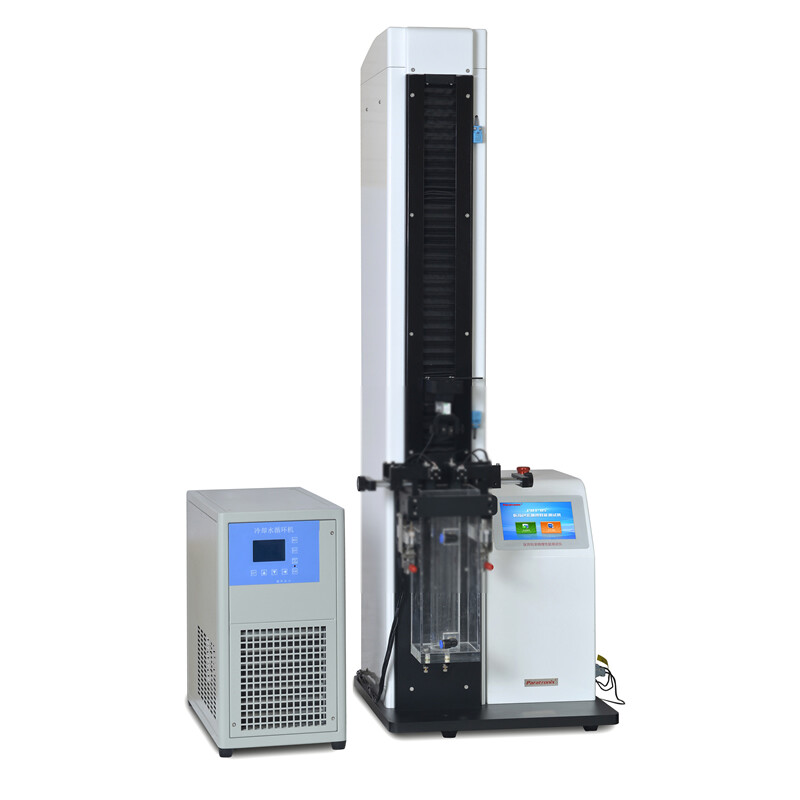

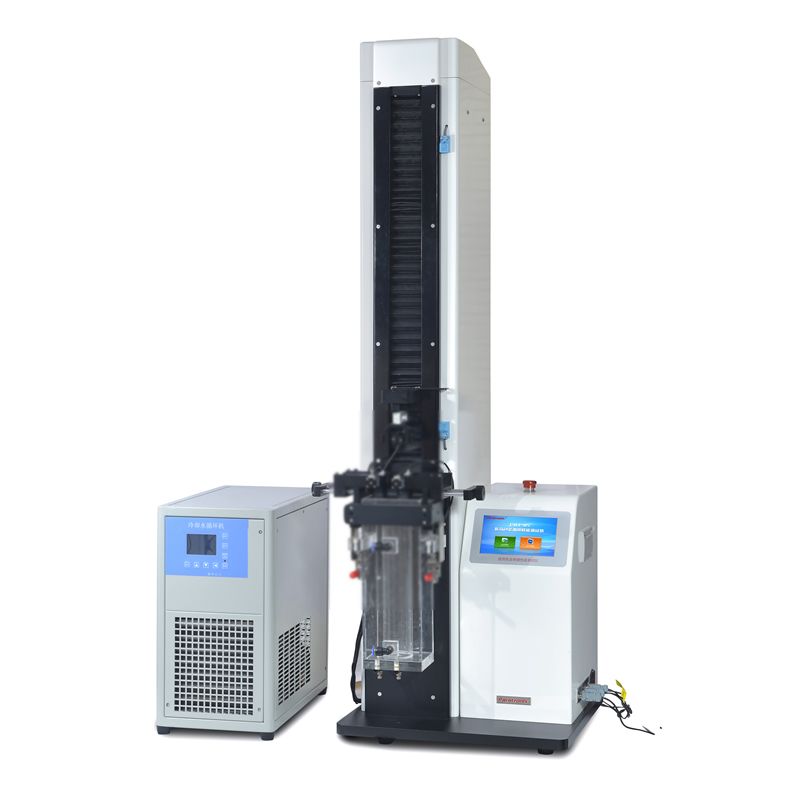

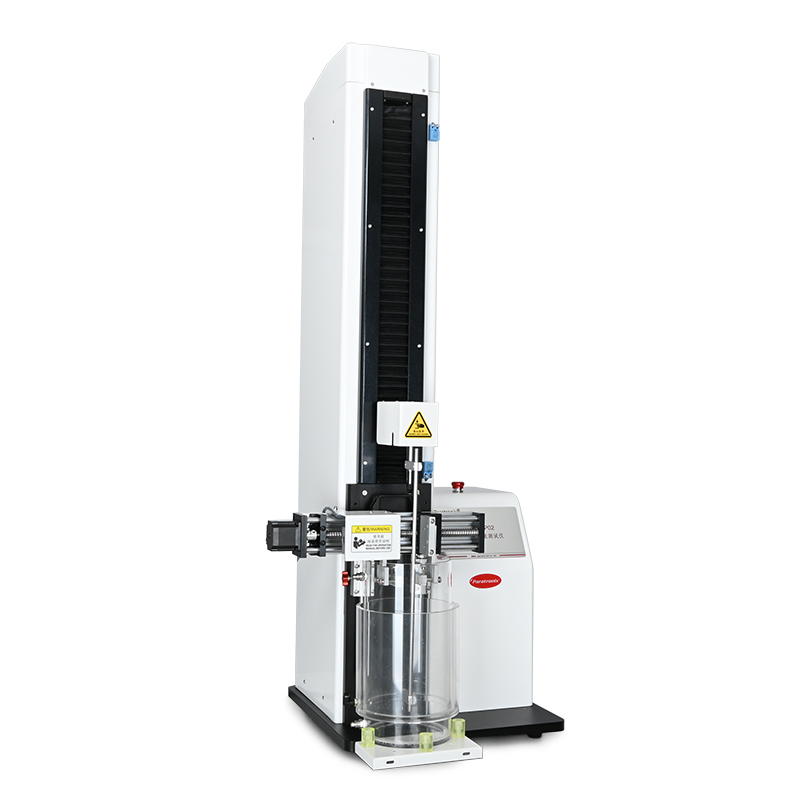

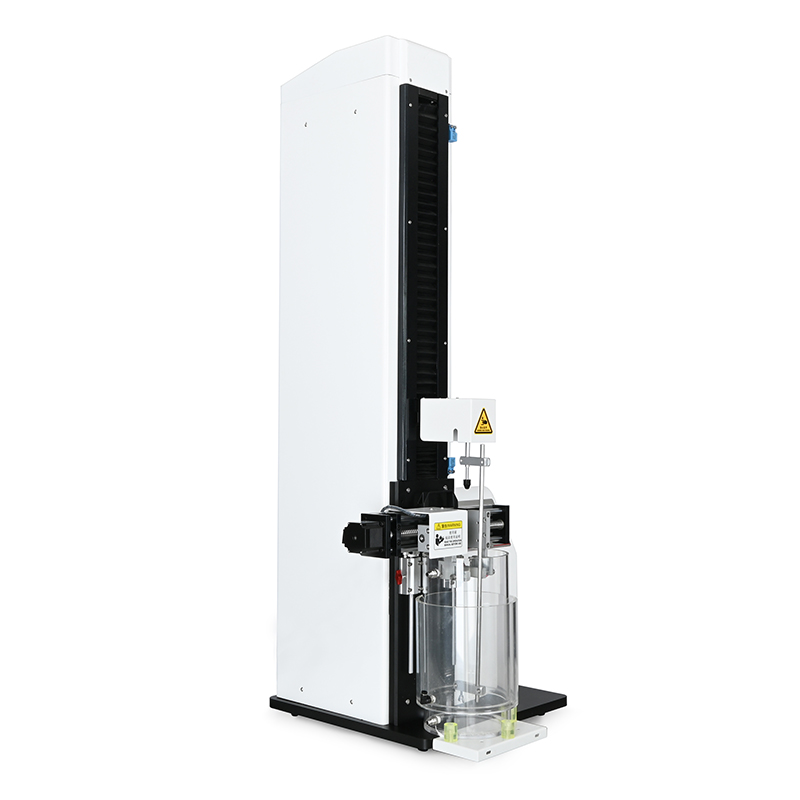

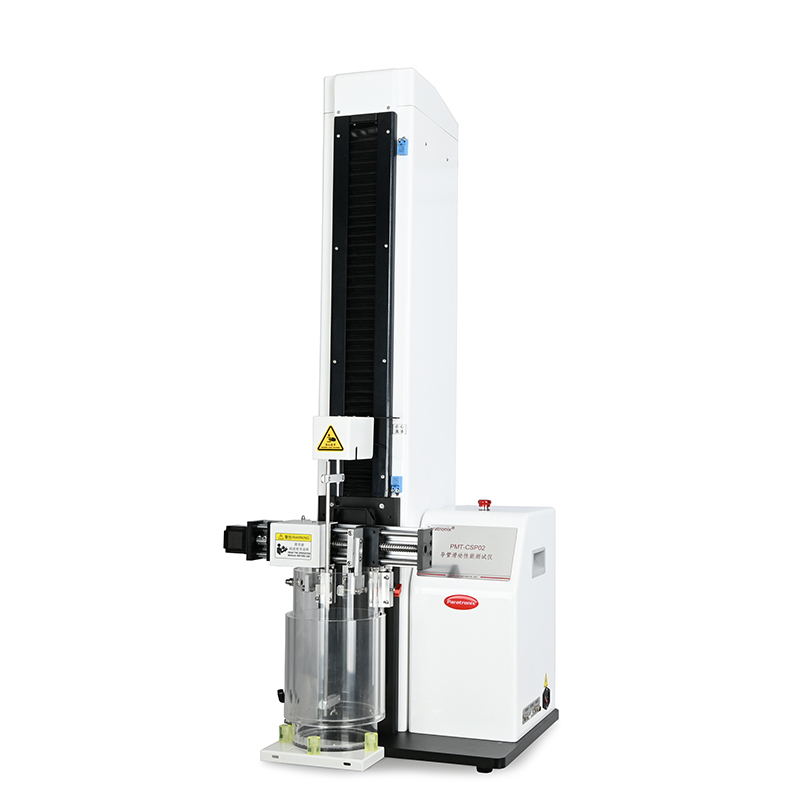

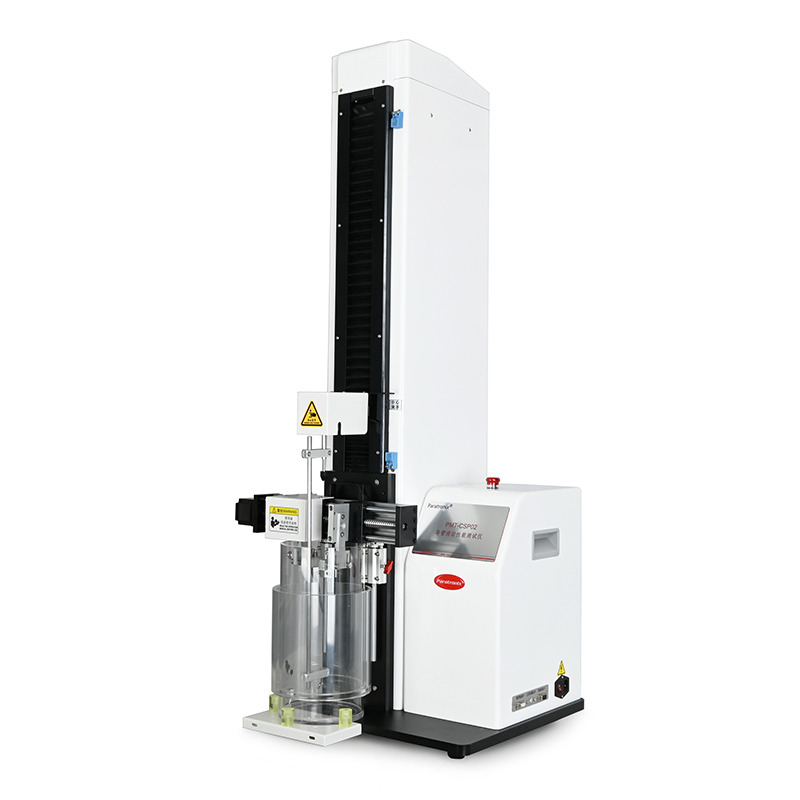

PMT-CSP02 catheter sliding performance tester was developed according to "YY/T 1536-2017 Standard Test Model for Evaluation of non-vascular catheter surface sliding Performance" and "T CAMDI 021-2019 Single-use hydrophilic coating guide wire". It is a high precision test instrument developed for testing the friction performance index of medical human body, external catheter and guide wire. The equipment adopts imported high-precision sensor, high-precision ball screw and unique structural design; ensure the high stability of operation. The test results and curves are accurate and stable, and the stepless speed regulation can meet the requirements of the non-standard test speed. The equipment is widely used in testing institutions and medical device manufacturers.

Features

● Imported microcomputer control technology, open structure, friendly man-machine interface operation, easy to use

● Multiple operating modes can be selected, increasing the fixed force value and positioning shift mode, making the operation more simple and convenient

● High precision screw drive, high-quality stainless steel guide rail and reasonable layout, to ensure the smooth operation of the instrument

● Imported high-precision force sensor, measuring accuracy is better than 0.5

● Precision differential motor drive, more stable transmission, lower noise, more accurate positioning, better repeatability of test results

● LCD Chinese display, automatic measurement, with the test data statistical processing function

● High speed micro printer output, printing fast, low noise, no need to change the ribbon, easy to replace the paper roll

● Built-in special calibration program, easy to measure, calibration department (third party) to calibrate the instrument

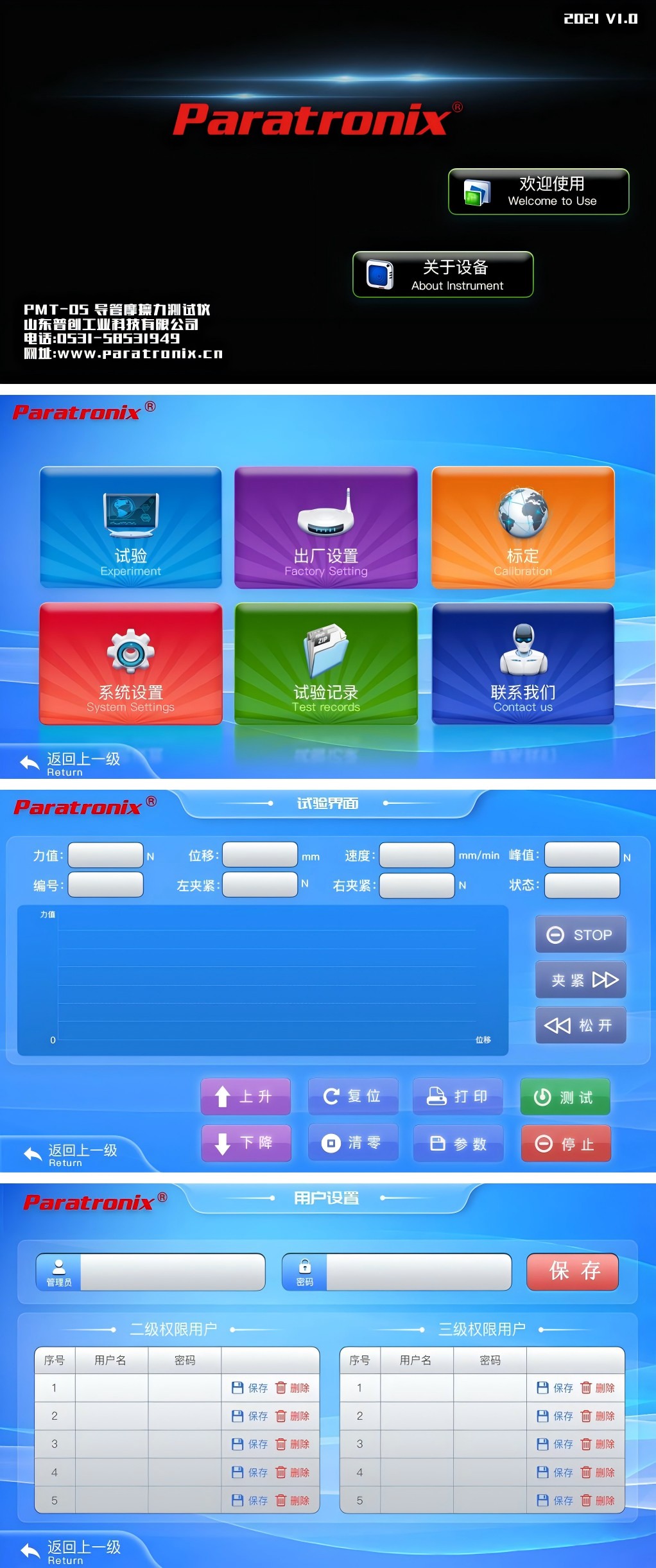

● HD color 7-inch touch screen display curves, text, visual clearer

● Can be equipped with computer software, two-way operation (optional)

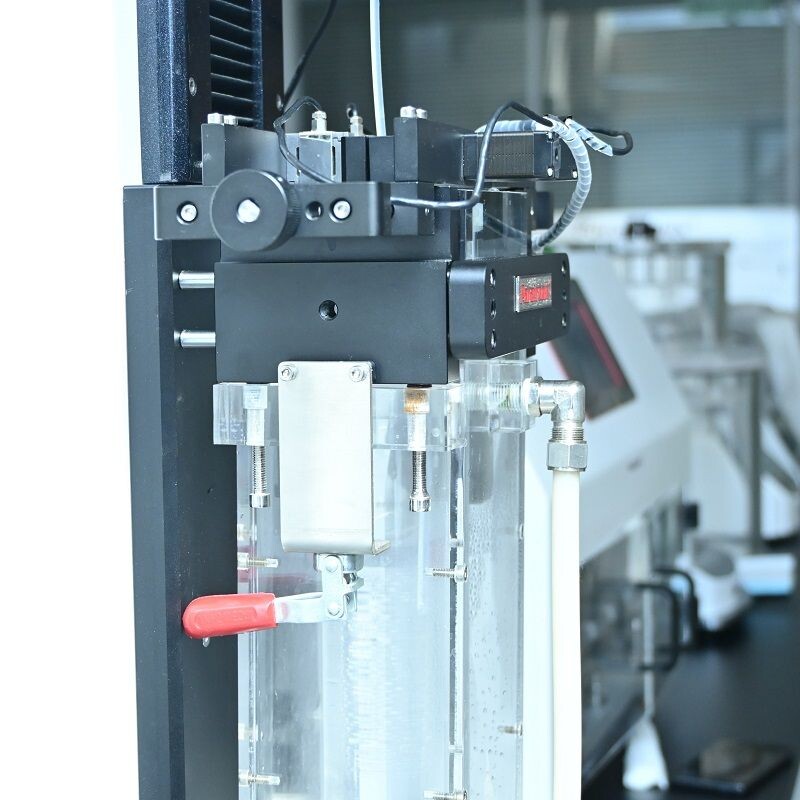

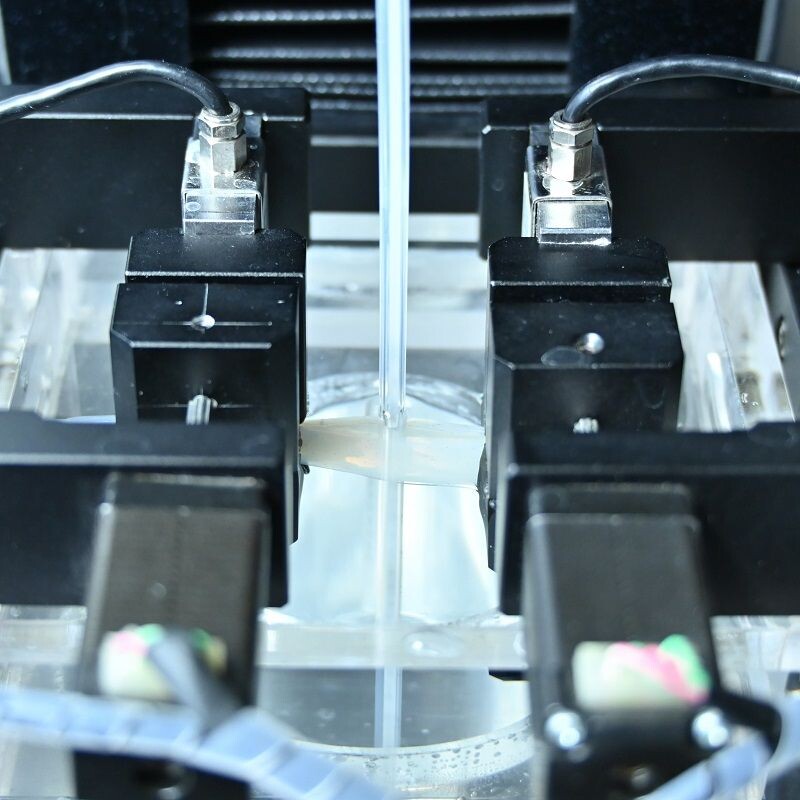

● Cross alignment adjustment device ensures accurate and reliable test

Technical parameters

Configuration list

Standards

"YY/T 1536-2017 Standard Test Model for Evaluation of surface sliding Performance of non-vascular catheter", "T CAMDI 021-2019 Single-use hydrophilic coating guide Wire"
