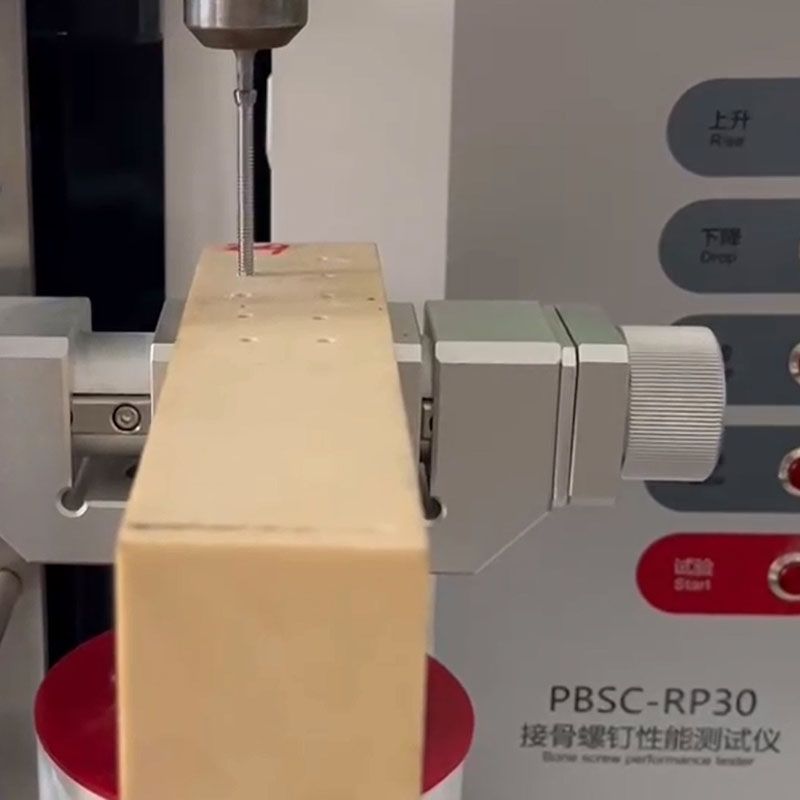

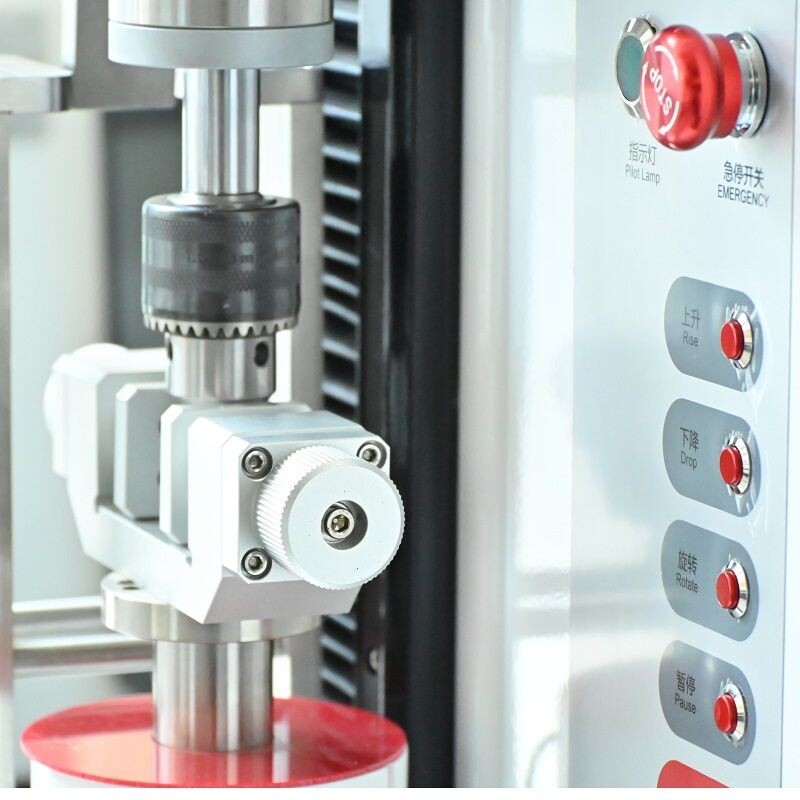

PBSC-RP30 Bone Screw Performance Tester  is a multifunctional integrated high-precision testing instrument developed for the medical orthopedic bone screw performance test, it can be used for testing of  driving torque, self-tapping performance, pull out force, torsion performance and insertion force of bone screws. This instrument can be widely used in medical device testing institutions, scientific research institutions and medical device manufacturers.

Product Features

● Open structure, user-friendly interface, multiple curve drawing modes

● Adopt precision differential motor drive, smoother transmission, lower noise, more accurate positioning, better repeatability of test results

● Imported customized high-sensitivity load cells, imported (TBI) lead screws to ensure precise displacement

● Professional high-performance control system controls the action of dual servo motors

● Fully automatic measurement

● Simple and easy to operate with one-button operation

● Professional fixtures are available for different test modes

● Built-in dedicated calibration program, convenient for measurement and calibration

● Support data export and Office software, combined with optimized comprehensive data processing system

● Multiple testing functions are available including pull-out performance, self-tapping performance, rotation torque, torsion performance, insertion force

Technical Specification

Test Standards

ASTM F543, YY 0018-2016, YY/T1504, YY/T1505, YY/T1506, YYT 0119.2-2014, YYT0509, YY/T 0521-2018
