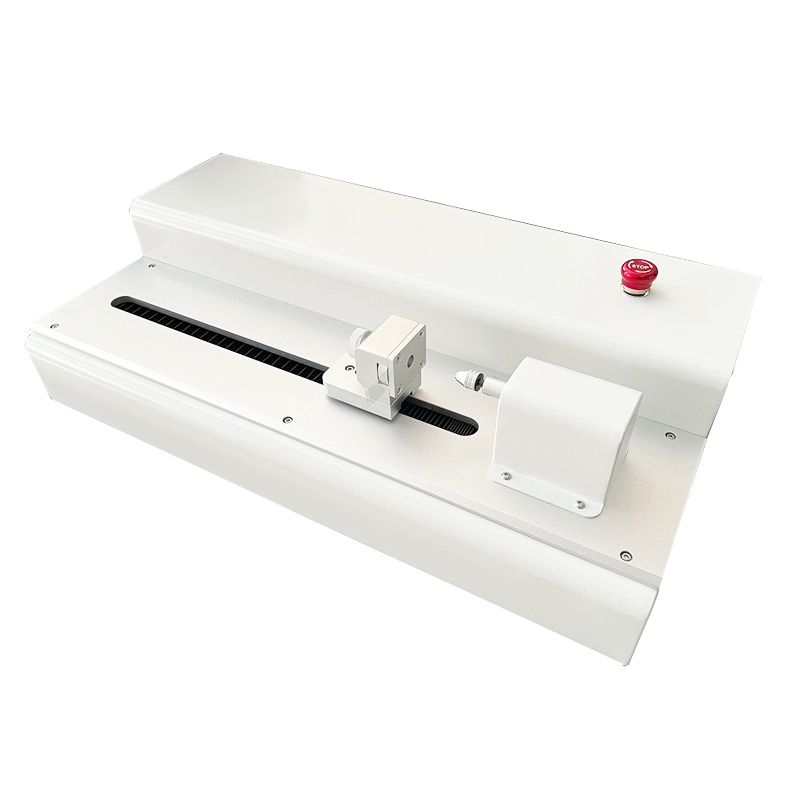

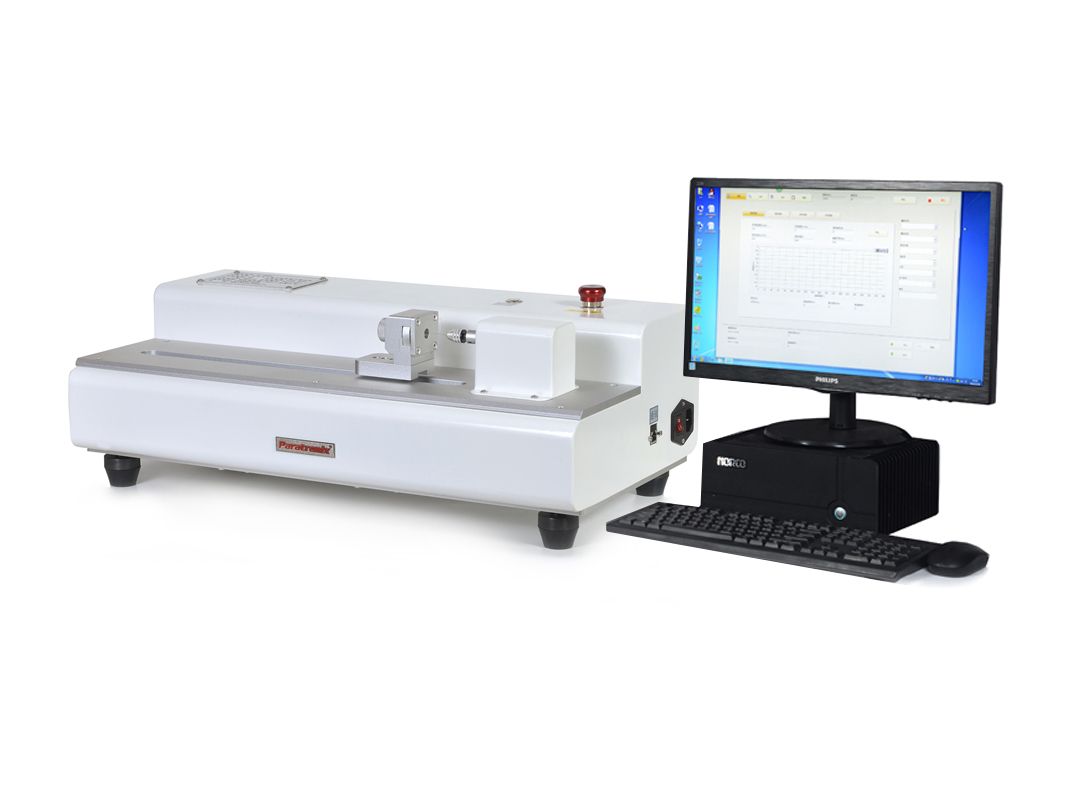

NTP-06 Artificial Skin Puncture Tester

NTP-06 Needle Point and Artificial Skin Puncture Force Tester is based on "GB18671-2009" research and development, suitable for intravenous infusion needle, acupuncture needle, blood needle puncture force test.
TEL: +86-531-58531949
WhatsApp: +86-18953110231
Email: sales@paratronixen.com
Get a Quote
Product Introduction

Introduction


NTP-06 Needle Point and Artificial Skin Puncture Force Tester is based on "GB18671-2009" research and development, suitable for intravenous infusion needle, acupuncture needle, blood needle puncture force test. Compared with the ordinary puncture force tester, the device has a higher signal acquisition frequency, which can record the starting force and the typical peaks of F0, F1, F2, F3 and F4 in detail, and draw the corresponding curves of the output. The equipment can also increase the rubber sleeve resilience test according to YY/T 1618 -- 2018.


Parameters


ItemParameter
Maximum test force6N
Minimum reading value of the test force0.01N
Displacement minimum read value0.01mm
Relative error of indication±1%
Repeatability relative error of test force indication value≤1%
Test force zero relative error±0.1%FS
Velocity range0.5-300mm/min
Test space280mm
Loading modeElectric
Supply voltage220V±10%   50Hz (Reliable grounding)
Weight＜15Kg


Standard


GB18671-2009
